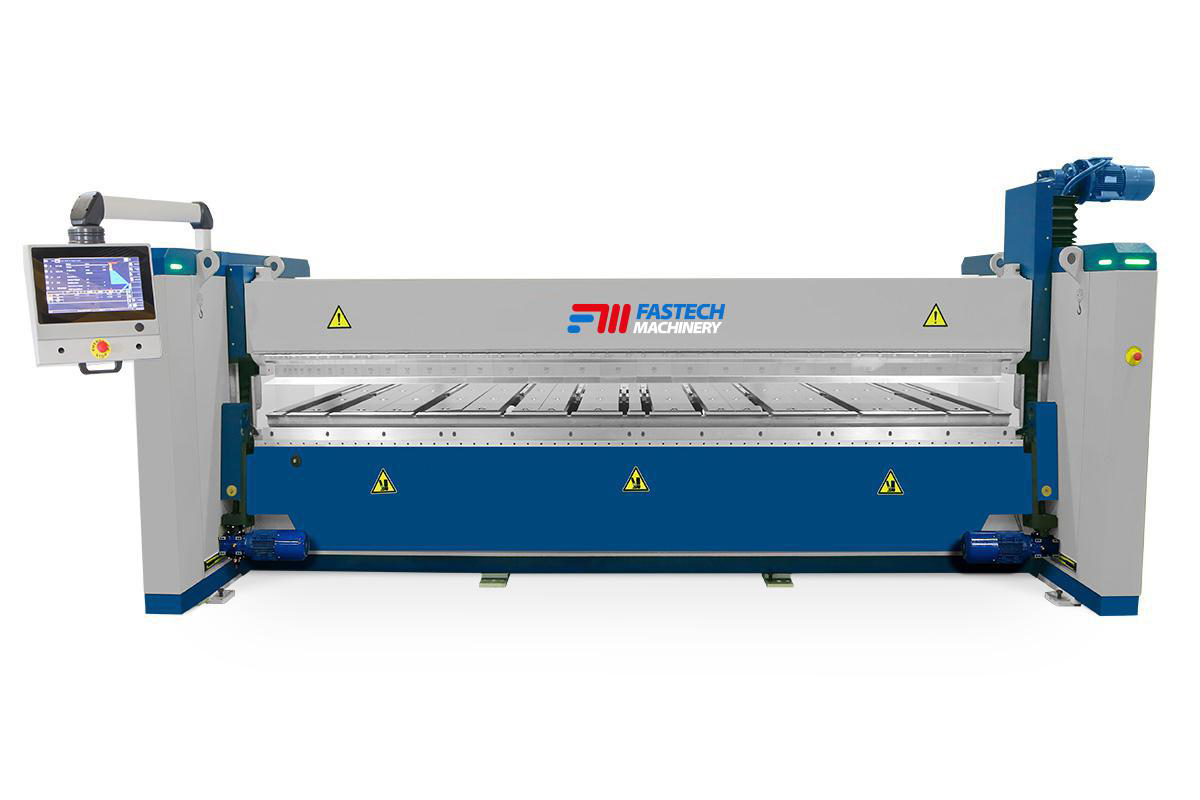

Product Description
| Model | Sheet Length (mm) |
Steel (mm) |
Stainless (mm) |
Aluminium (mm) |
Axis Speed ( Y°/ Z / X mm ) /sn |
Motor Power ( Y / Z / X ) kW |
Dimensions W / L / H (mm) |
Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| FMA 2040 | 2050 | 4 | 3 | 6 | 65 / 40 / 200 | 2×3 / 2×3 / 0,4 | 2500/3550/2100 | 5700 |
| FMA 2535 | 2550 | 3,5 | 2,5 | 5 | 65 / 40 / 200 | 2×3 / 2×3 / 0,4 | 2500/4050/2100 | 6300 |
| FMA 3230 | 3200 | 3 | 2 | 4 | 65 / 40 / 200 | 2×3 / 2×3 / 0,4 | 2500/4750/2100 | 7100 |
| FMA 4225 | 4200 | 2,5 | 1,5 | 3,5 | 65 / 40 / 200 | 2×3 / 2×3 / 0,4 | 2500/5750/2100 | 8050 |
Standard Features
- 250 mm stroke capacity and 180° rotating combi beam with 2 tool stations as 120 mm high goat foot tool on station 1 and single piece sharp nose tool on station 2
- Erfold Basic CNC line by line software on 15.4” touchscreen controller with swivel arm
- 1300 mm motorized back gauge system and sheet support table with ball casters
- Manual crowning system
- Motorized folding beam adjustment as 80 mm (A axis)
- 3 swtich control foot pedal
- Led function lights
- Front light barriers
Optional Features
- 2000 / 3000 / 4000 mm motorized back gauge system and sheet support table with ball casters
- L shape sheet support table (metal or with brushes)
- U shape sheet support table (metal or with brushes)
- Erfold Advanced / 3D CNC graphic control software on 15.4” touchscreen controller with swivel arm
- Solid lower beam tool and feather grooves
