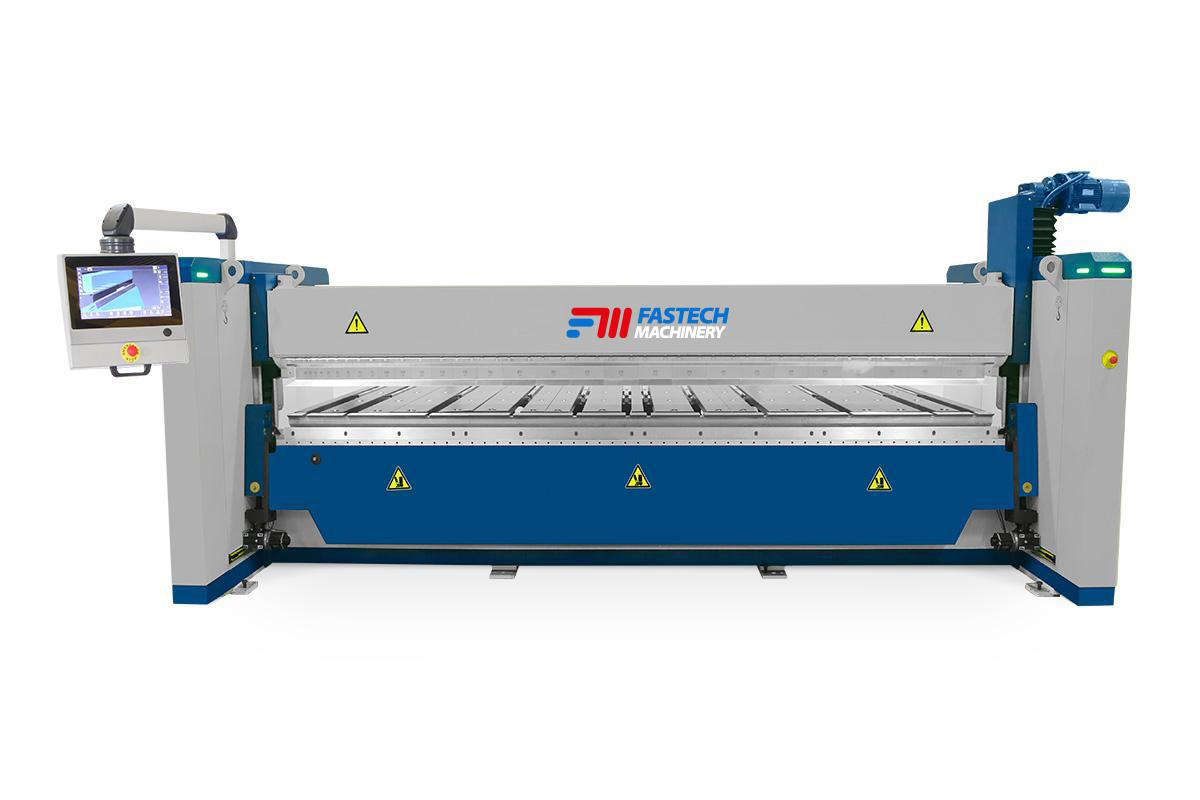

Product Description
| Model | Sheet Length (mm) |
Steel (mm) |
Stainless (mm) |
Aluminium (mm) |
Axis Speed ( Y°/ Z / X mm ) /sn |
Motor Power ( Y / Z / X ) kW |
Dimensions W / L / H (mm) |
Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| FMAS 2040 | 2050 | 4 | 3 | 6 | 85 / 60 / 200 | 2×3 / 2×3 / 0,75 | 2500/3550/2100 | 5700 |
| FMAS 2535 | 2550 | 3,5 | 2,5 | 5 | 85 / 60 / 200 | 2×3 / 2×3 / 0,75 | 2500/4050/2100 | 6300 |
| FMAS 3230 | 3200 | 3 | 2 | 4 | 85 / 60 / 200 | 2×3 / 2×3 / 0,75 | 2500/4750/2100 | 7100 |
| FMAS 4225 | 4200 | 2,5 | 1,5 | 3,5 | 85 / 60 / 200 | 2×3 / 2×3 / 0,75 | 2500/5750/2100 | 8050 |
Standard Features
- Each axis on the machine is servo motor driven
- 250 mm stroke capacity on 180° rotating combi clamping beam with 2 tooling stations as 120 mm high segmented goat foot tools on station 1 and 20° single piece sharp nose tool on station 2
- Erfold Basic CNC line by line controller software on 15.4” touchscreen controller with swivel arm
- 1300 mm motorized back gauge and sheet support table with ball casters
- Manual crowning system
- 3 swtich control foot pedal
- Front light barriers
- Led function lights
Optional Features
- 2000 / 3000 / 4000 mm motorized back gauge system with sheet support table
- L shape back gauge system (metal or with brushes)
- U shape back gauge system (metal or with brushes)
- Stainless steel backgauge table covers
- Erfold Advanced / 3D CNC graphic control software on 15.6 ” touchscreen controller with swivel arm
- Solid lower beam tool and feather grooves
