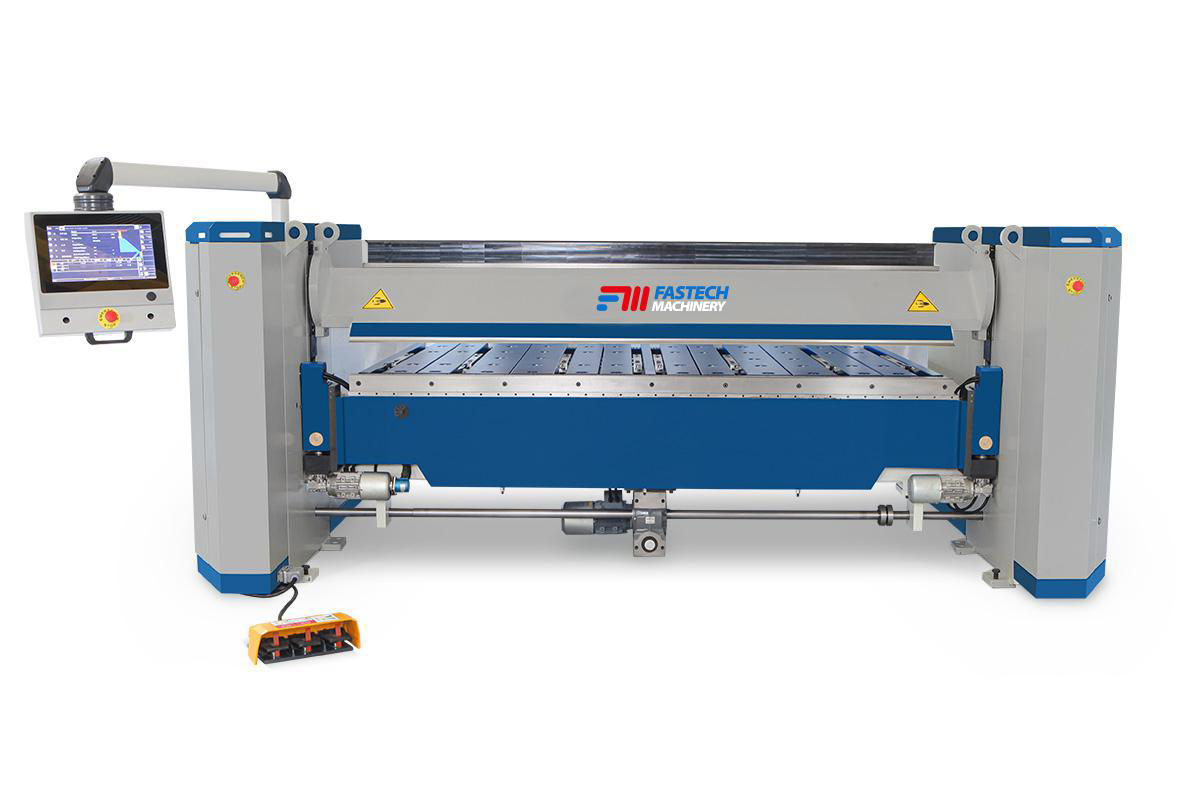

Product Description
| Model | Sheet Length (mm) |
Steel (mm) |
Stainless (mm) |
Aluminium (mm) |
Axis Speed ( Y°/ Z / X mm ) /sn |
Motor Power ( Y / Z / X ) kW |
Dimensions W / L / H (mm) |
Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| FMD 2525 | 2550 | 2,5 | 1,5 | 3,5 | 65 / 60 / 200 | 3 / 1,5 / 0,4 | 2150/3850/1900 | 4650 |
| FMD 3220 | 3200 | 2 | 1,2 | 3 | 65 / 60 / 200 | 3 / 1,5 / 0,4 | 2500/4450/1900 | 5650 |
| FMD 4215 | 4200 | 1,5 | 1 | 2 | 65 / 60 / 200 | 3 / 1,5 / 0,4 | 2500/5450/1900 | 6850 |
Standard Features
- 160 mm stroke capacity on 180° rotating combi clamping beam with 2 tool stations as 90 mm high segmented goat foot tools on station 1 and 20° single piece sharp nose tool on station 2
- 90 mm high segmented goat foot tools, 60 HRC laser surface hardened, darkened against corrosion and laser marked
- Erfold Basic CNC line by line control software on 15.6 ” touchscreen controller with swivel arm
- 1000 mm motorized back gauge system and sheet support table with ball casters
- Manual folding beam adjustment as 80 mm
- 3 swtich control foot pedal
- Front light barriers
- Led function lights
Optional Features
- 1500 / 2000 / 3000 / 4000 mm motorized back gauge system and sheet support table
- L shape back gauge system (metal or with brushes)
- U shape back gauge system (metal or with brushes)
- Solid lower beam tool with feather grooves
- Erfold Advanced / 3D CNC graphic control software on touchscreen controller with swivel arm
- Manual crowning system
- Motorized folding beam adjustment as 80 mm
