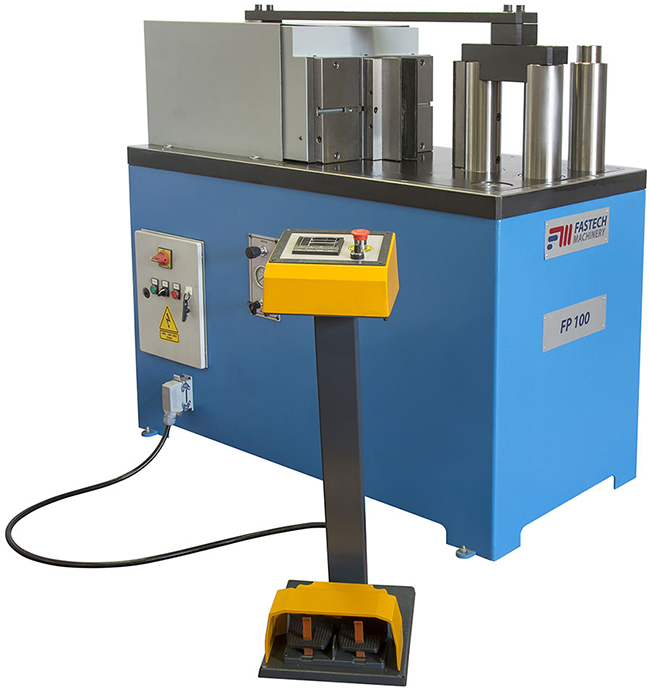

Product Description
Standard Features
- All Steel Frame
- 2 Pin holes (Ø105mm)
- 2 extra round Pins for tooling assembly (Ø90mm) SIDES
- Quick Tool Change System
- Toolings are hardened and grinded.
- Toolings can be used both ways
- 9mm/sec working speed (CE Norms)
- Automatic and Manual Working Modes can be selected by a handswitch
- Digital Read Out for stroke memory
- Pressbrake Tooling and punch 1 set (300mm)
- Manual Back Gauge as standard
Max Pressure 100 Ton
Motor Power 10 kW
Max Stroke 285 mm
Working Speed 9mm/sec
Table 750 x 1420mm
Machine Height 900mm
Oil Tank 100 Lt
Weight 2100 Kg
Bending Capacity 350mm (Height)
CE
