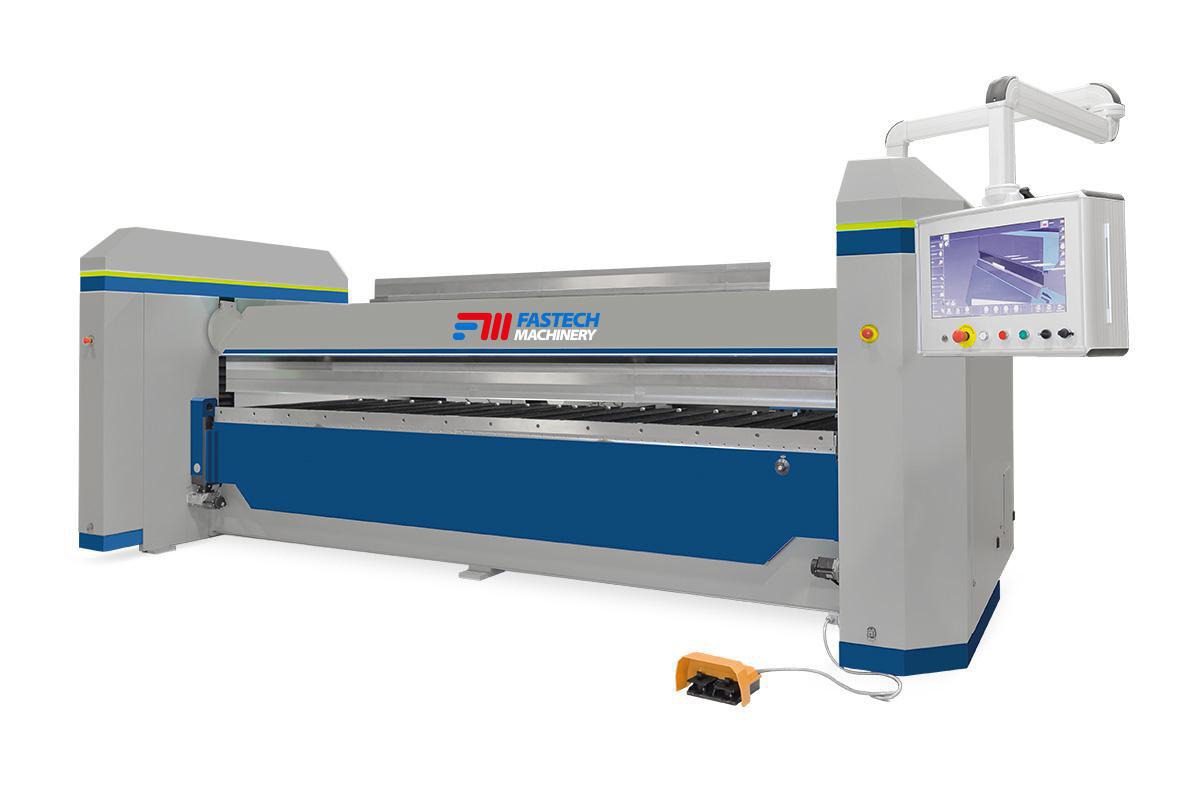

Product Description
| Model | Sheet Length (mm) |
Steel (mm) |
Stainless (mm) |
Aluminium (mm) |
Axis Speed ( Y°/ Z / X mm ) /sn |
Motor Power ( Y / Z / X ) kW |
Dimensions W / L / H (mm) |
Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| FSC 3240 | 3200 | 4 | 3 | 6 | 85 / 60 / 200 | 2X3 / 2X3 / 0,75 | 2500/4950/2100 | 7300 |
| FSC 4230 | 4200 | 3 | 2 | 4,5 | 85 / 60 / 200 | 2X3 / 2X3 / 0,75 | 2500/5950/2100 | 8250 |
Standard Features
- Each axis is servo motor driven
- 180° rotating clamping beam with 350 mm stroke capacity and 2 tooling stations as 170 mm high segmented goat foot tools on station 1 and 20° single piece sharp nose tool on station 2
- Erfold Basic CNC line by line control software on 22” touchscreen controller with swivel arm
- 1300 mm motorized back gauge system and sheet support table with ball casters
- Manual crowning system
- 3 swtich control foot pedal
- Front light barriers
- Led function lights
Optional Features
- 2000 / 3000 / 4000 mm motorized back gauge system and sheet support table
- L shape back gauge system (metal or with brushes)
- U shape back gauge system (metal or with brushes)
- Stainless steel backgauge table covers
- Solid lower beam tool and feather grooves
- Erfold Advanced / 3D CNC graphic control software on 22” touchscreen controller with swivel arm
