Cutting in Excellence…
Transforming raw pipes to unique parts of daily life by cutting in excellence.
Versatility in Cutting-Edge…
Possibility of different designs makes TubeCut more versatile and can be used with ProCut, BevelCut as well as sole pipe cut design.

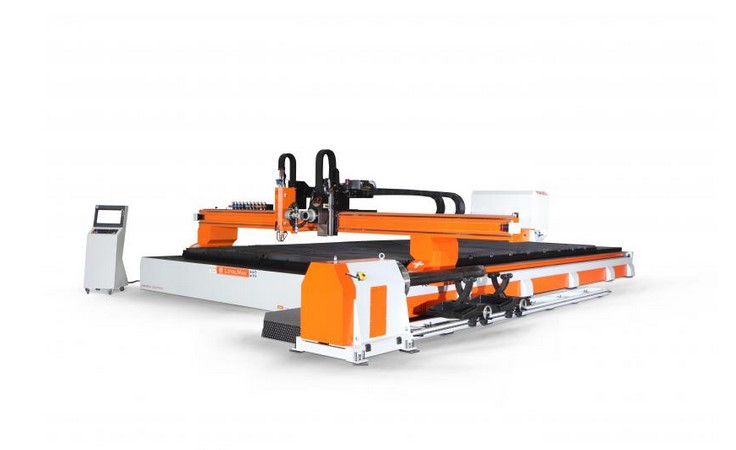

Product Description
Standart Equipment
♦ Hypertherm Edge Connect CNC
♦ Hypertherm Plasma Power Source
♦ 19,5” Touch Screen
♦ Hypertherm RTP pipe cutting software
♦ Cutting Diameter ø 30/500mm (Please ask for other dimension)
♦ Easily Adjustable Pipe and Tube Support
♦ Torch Collision Protection System
♦ Automatic Torch Height Control
♦ Axis positioning accuracy ± 0,02 mm
♦ Axis positioning seed max. 20 m/min.
♦ Remote assistance
♦ Laser pointer for plate alignment
♦ Automatic dust and fume extraction system
♦ Pause / resume last part (Eg. electricty cut)
Optional Equipment
♦ Plasma Power Sources
— HPRXD Series
> HPR400XD
> HPR800XD
— XPR Series
> XPR170 – choice of CORE / VWI / OPTIMIX Automatic Gas consoles
> XPR300 – choice of CORE / VWI / OPTIMIX Automatic Gas consoles
— MAXPRO200
— POWERMAX Series – 45XP / 65 / 85 / 105 / 125
♦ Automatic Nesting Software
— Hypertherm Pronest LT Essential
— Hypertherm Pronest LT Unlimited
— Hypertherm Pronest Advance
♦ Oxy Cutting System with capacitve sensor system
♦ Oxy Cutting System wtih Auto Gas Console
♦ Automatic / Manual Bevel Cutting
♦ True Hole Technology
♦ Adapter for Suqare profile
♦ LoyalMak Jet Filter
♦ Lateral Drawers for slag collection system
