Hardened and ground slide ways ensure high accuracy
Complete coolant and lubrication system
With high motor power and wide range speed, machine adapts to high speed cutting when using hard alloy cutters
Vertical milling head can rotate ±45°
Spindle quill can move vertically
Worktable is applied to automatic and rapid feed
With gear transmission in machine body and lifting platform, the machine is rigid enough to bear heavy duty processing

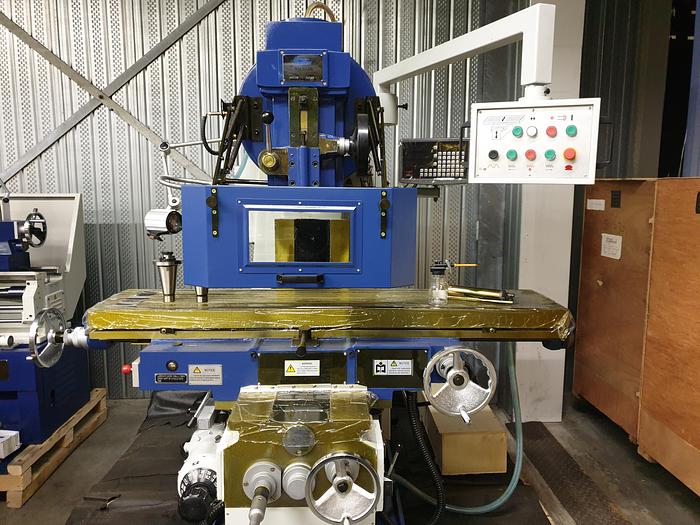

Product Description
3-axis digital readout system, LED working lamp, Safety cover CE, 3 phase 5 poles EU plug, Arbor Ø32×169 mm, Arbor Ø40×174 mm, 2 pcs wrench and bar for face milling, Mandrel draw-in screw rod M24x605, 4 pcs foundation bolts and nuts M20x500
Mounted with face, cylindrical, side, bevel and formed milling cutters, the machine is suitable to process flat, inclined surface, slots and gears on miscellaneous work pieces. Equipped with optional accessories, such as rotary table and dividing head, machine can be applicable to versatile processing. It is an ideal machine tool for machining process, maintenance, instrument, die and moulds.
Specifications
| Manufacturer | Rogi |
| Model | WM5036 |
| Condition | New |
| Item No | WM5036 |
| Table size | 360 x 1600 mm |
| No. of slots Width of T-slot Distance between T-slots | 3 18 mm 80 mm |
| Table load-bearing | 550 kg |
| Table travel MANUAL Table travel POWER X,Y,Z | 1020 x 300 x 410 mm 1000 x 280 x 400 mm |
| Feed speed steps | 18 |
| Table feed speed ranges X | 15 ~ 750 mm/min |
| Table feed speed ranges Y | 15 ~ 750 mm/min |
| Table feed speed ranges Z | 5.7 ~ 280 mm/min |
| Rapid feed ranges X | 2250 mm/min |
| Rapid feed ranges Y | 2250 mm/min |
| Rapid feed ranges Z | 844 mm/min |
| Vertical milling head rotary angle | ±45º |
| Distance between vertical guide to middle position of table | 235 ~ 535 mm |
| Distance between spindle nose to table surface | 50 ~ 460 mm |
| Spindle taper | ISO50 |
| Spindle stroke | 75 mm |
| Arbor diameter | Ø32, Ø40 mm |
| Spindle speed steps | 18 |
| Spindle speed ranges | 30 ~ 1500 r/min |
| Main motor power | 7.5 kW |
| Feed motor power | 1.5 kW |
| Machine dimension | 2307 x 2067 x 2096 mm |
| Net weight | 3370 kg |
