High power and precision for production, repairs and training
Design features excellent rigidity and performance
Heavy fixed angle table features a large setup area and high load capacity
Vertical gear head swivels and the quill can be moved manually
With 3-axis digital readout
Coolant system
Central lubrication
Click to add this item to cart.
Product Description

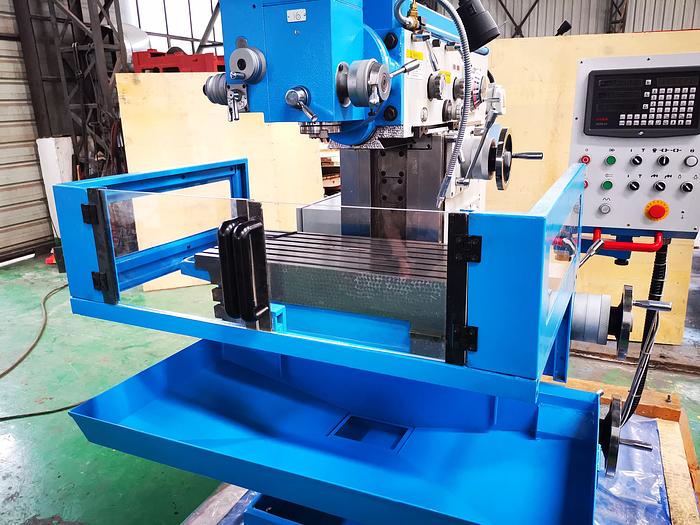

WM8140 – This tool milling machine is designed to be a middle size universal tool milling machine, which can perform procedures such as milling, boring, drilling and slotting, it is suitable for machining cutter, fixture, die and mould and other components with complex figuration. Using various special options, it can manufacture all kind of components such as spiral, arc, gear, rack, spline.
Specifications
| Manufacturer | Rogi |
| Model | WM8140 |
| Condition | New |
| Item No | WM8140 |
| Table size horizontal working table | 800 x 400 mm |
| Table size vertical working table | 950 x 250 mm |
| Longitudinal / transverse / vertical travel | 500/350/400 mm |
| Universal table Horizontal swivel | ±360º |
| Universal table Inclination to front and rear | ±30º |
| Universal table Inclination on left and right | ±30º |
| Vertical milling head Vertical travel of quill | 60 mm |
| Vertical milling head Axis inclination on left and right | ±90º |
| Horizontal spindle Spindle taper | ISO40 |
| Horizontal spindle Height from axis to ground | 1330 mm |
| Horizontal spindle Min. distance between axis and surface of horizontal table | 35 mm |
| Vertical spindle Spindle taper | ISO40 |
| Vertical spindle Min. distance between nose and surface of horizontal table | 5 mm |
| Horizontal and vertical spindle speed: steps/range | 18 steps / 40 ~ 2000 rpm |
| Longitudinal, transverse and vertical feeds: steps/ range | 18 steps / 10 ~ 500 mm/min |
| Vertical milling spindle feed | 3 steps / 0.03 ~ 0.12 mm/rev |
| Power of main motor / feed motor | 3 Kw / 1.5 Kw |
| Max. table load | 300 kg |
| Overall dimension | 1820 x 1640 x 1710 mm |
| Net weight |
