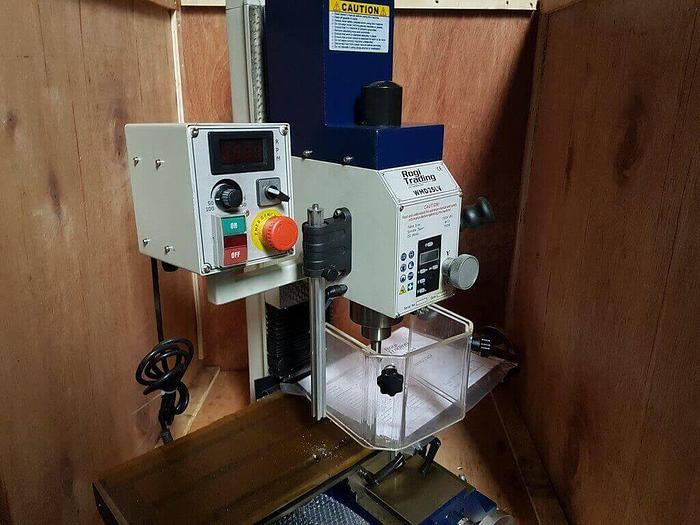

Compact, accurate variable speed milling & drilling machine
Spindle feed via cross lever for drilling
Fine adjustable crossfeed for milling
Stepless electronically controlled drive
Easy operating safety switch with low voltage release and emergency stop
Massive and precisely finished cross table, large dimensioned
Drilling/milling head rotating by ± 90°
Solid dovetail slideway, providing highest stability and upmost precision
Digital depth ruler, accuracy of the display 0.01 mm, reversible mm/inch
Easy to read speed counter
Equipped with emergency stop button
Options: digital readout system, stand, milling vise, clamping kit, milling chuck holder MT3 and collets, mill cutters
Click to add this item to cart.
Product Description
Specifications
| Manufacturer | Rogi |
| Model | WMD25LV |
| Condition | New |
| Item No | WMD25LV |
| Max. drilling capacity | 25 mm |
| Max. end milling capacity | 16 mm |
| Max. face milling capacity | 63 mm |
| Table size | 700×180 mm |
| Table travel | 490×155 mm |
| T-slot | 3×12 mm |
| Spindle taper | MT3 |
| Spindle stroke | 50 mm |
| Step of spindle speeds | Variable |
| Range of spindle speeds | 20 – 2250 rpm |
| Spindle incline angle | ca. 90º |
| Distance from spindle to column | 201 mm |
| Distance from spindle nose to table | 280 mm |
| Motor | 750W |
| Packing size | 870x550x860 mm |
| Weight | 135 kg |
