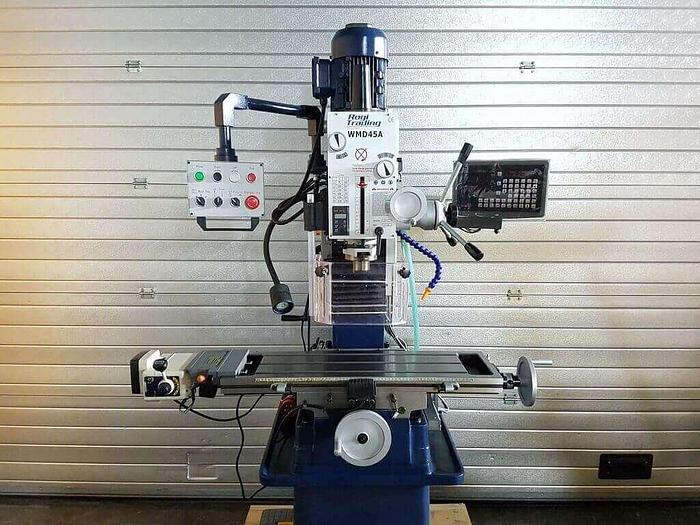

Accurate, widely useful milling & drilling machine
Extremely quiet operation
High precision grinding spindle
Large square column casting and table
Gear head enables to change speeds quickly
Head may be tilted right & left
High precision manual fine feed
Positive locks for table, head, spindle quill
Adjustable taper gibs for slideways
Easy to read digital depth display
Electrical box and control station
Equipped with double speed motor, tapping assembly
Equipped with 3 phase 5 poles EU plug
Tolerance test certificate
Click to add this item to cart.
Product Description
Specifications
| Manufacturer | Rogi |
| Model | WMD45A |
| Condition | New |
| Item No | WMD45A |
| Max. drilling capacity | 40 mm |
| Max. end milling capacity | 32 mm |
| Max. face milling capacity | 80 mm |
| Table size | 800 x 240 mm |
| Table travel | 560 x 230 mm |
| T-slot | 3 x 14 mm |
| Spindle taper | ISO30 |
| Spindle stroke | 120 mm |
| Step of spindle speeds | 12 |
| Range of spindle speeds | 75~3200 rpm |
| Spindle incline angle | ±90º |
| Distance from spindle to column | 260 mm |
| Distance from spindle nose to table | 470 mm |
| Motor | 1.1 kW |
| Packing size | 1180 x 960 x 1400 mm |
| Weight | 580 kg |
